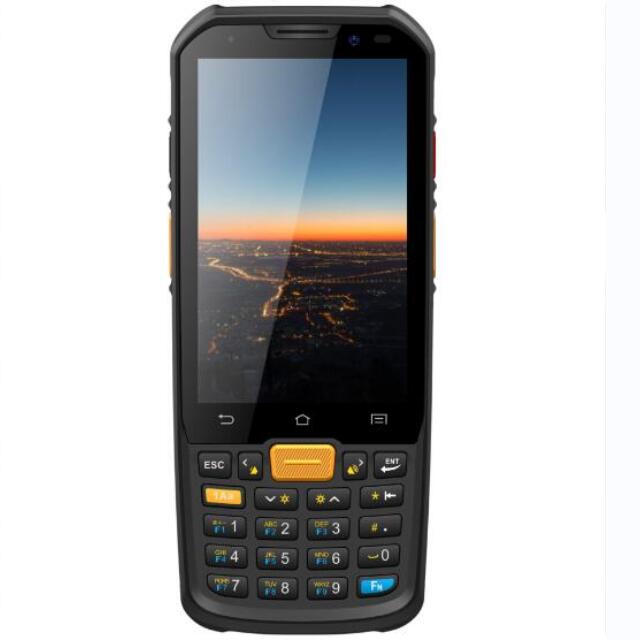

Mobile Computers
| Physical Characteristics | |
| Dimensions | 160.5(H)×67(W)×17(T)mm 6.3(H)×2.6(W)×0.67(T)inch |
| Weight | 8.57 oz./243 g（Batteries required,Depends on Product Configuration） |
| Display | 4 in. 800(H)×480(W) WVGA industrial-grade IPS display |
| Touch Panel | Capacitive touch panel,Support Water&Gloves Touch Mode |
| Backlight | 400 NITS, LED |
| Power | Removable&Rechargeable 3.85V 5100mAh Lithium-ion battery |
| Expansion Slot | Micro SD Card slot, 256GB |
| Expansion Ports | 4 Pin Bottom connection：Charging port 5V/2A,Support USB communication and OTG mode |
| SIM Slots | 2x Nano SIM |
| Notifications | Audible tone; multi-color LEDs; Vibration |
| Network Connections | WWAN,Wi-Fi, Ethernet cradle |
| Voice and Audio | Speaker, Receiver, Dual Mic,USB Type-C headset support |
| Keypad | 21 key Numeric with FN keys, Supports on-screen keypad |
| Interface Ports | Bottom USB 2.0 OTG - host/client (Type-C) |
| Performance Characteristics | |
| CPU | MTK MT6762, Octa-core Cortex-A53, 2.0GHz |
| Operating System | Android 11.0 |
| RAM | 2G/3G |
| Flash | 16GB/32GB eMMC 5.1 |
| User Environment | |
| Operating Temp. | 0℃ to +55℃ |
| Storage Temp. | -40℃ to +70℃ |
| Humidity | 5% to 95% non-condensing |
| Sealing | IP65 |
| Drop Specification | 1.5m(Concrete Surface) |
| Tumble Specification | 500 round 1.0 meter tumbles（1000 times impact） |
| Electrostatic Discharge (ESD) |
+/-15 kV air discharge, +/-8 kV direct discharge |
| Interactive Sensor Technology | |
| Sensor | Proximity Sensor、Light Sensor、Accelerometer |
| Scanning | ME5030 Optional: uE966/ME5066/SE5500 |
| Camera | Rear 5MP auto focus; Flash LED Optional: Rear 13M auto focus; |
| NFC | Optional |
| Wireless WAN | |
| WAN Radio Frequency | TDD-LTE(B34/B38/B39/B40/B41) FDD-LTE(B1/B3/B5/B7/B8/B20/B28A/B28B) WCDMA(B1/B5/B8) TD-SCDMA(B34/B39) CDMA2000 1x EV-DO Rev.A BC0 (800MHz) GSM/EDGE/GPRS(850/900/1800/1900) |
| GPS | |
| Positioning System | GPS with A-GPS: Glonass; BeiDou; Galileo |
| Wireless LAN | |
| Radio | IEEE 802.11 ac/a/b/g/n/d/e/h/i/j/k/r/v/w（2.4G/5G Dual band WIFI） |
| Operating Channels | CH1-CH13,CH36-CH165 |
| Security and Encryption | WEP,WPA/WPA2-PSK,WAPI,WAPI-PSK EAP: EAP-TLS,EAP-TTLS,PEAP-MSCHAPv2,PEAP-TLS,PEAP-GTC, PWD,SIM,AKA |
| Fast Roam | Supports 802.11r Fast Roaming |
| Wireless PAN | |
| Bluetooth | Bluetooth 5.1 ,Bluetooth Low Energy (BLE);secondary Bluetooth BLE beacon for finding lost (powered off) devices |
| Communication Distance | >10m |
| Standard Accessories | Adapter Charger ×1、USB Type-C cable ×1、Rechargeable Battery ×1 |
| Optional Accessories | 4-Slot battery Charger、Single-Slot Charge+USB/Ethernet、OTG Cable |
